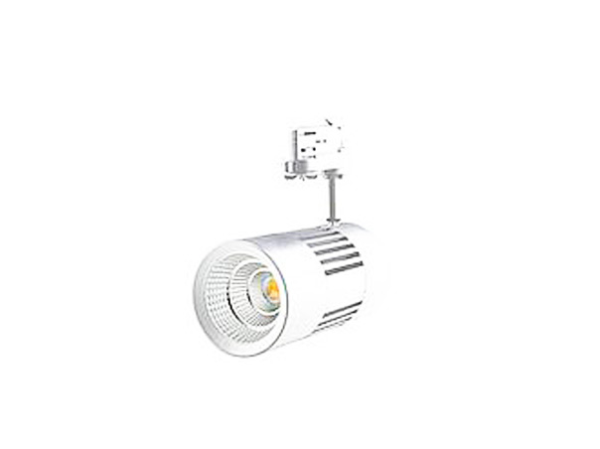

40W LED 3 rail track light CRI90 5 Years Warranty 3 Colours
Very bright 40W LED 3 rail track light CRI90 with very good colour rendering of CRI>90 and bright 3460 lumen luminous flux. The LED CRI CRI90 3-phase track spotlight is available in three different housing colours (white / black / silver). These LED track spotlights for 3-phase track systems have a very good price/performance ratio and are offered by the manufacturer with a 5 year manufacturer's warranty.
LED 3-phase track light A90 with very good colour rendering
If you are looking for a very good reproduction of colours in products and objects and need a bright spotlight, this model is the perfect choice. This LED lamp for rail systems is ideal for applications where the colours of illuminated objects need to be reproduced very well. For example, in high-quality retail stores, shoe shops or exhibition stands. Colours are presented very realistically and illuminated goods look more realistic with a realistic colour depth.
40W LED Luminaire 3-phase track system
The track-mounted spotlight uses branded LED chips The power supply is absolutely silent and thus does not interfere with continuous operation. The passive heatsink structure provides uniform cooling and enables lifetimes of up to 50,000 hours.
With 40W power consumption, the LED track system lamp achieves bright 3460 lumen luminous flux. The busbar adapter is already included. The use is very flexible due to a setting and rotation range of 350° degrees horizontal and 90° vertical. The model fits in all common 3-phase rails. Very nice and well processed LED 3-phase track spotlight made of stable aluminum. die-cast housing.
Light colour 3000K warm white at 36° beam angle
The light colour of this series of track lamps is set to 3000K warm white with a 36° beam angle. If you're looking for interchangeable optics or a 4000K Neutral White LED rail-mounted spotlight with high colour rendering, check out the models on the following page.
On request we can provide you with light calculation data.
More powerful variants available
Other versions of this Led rail spotlight are available in the power classes 7.5 Watt, 12Watt, 22Watt, 30Watt and 40Watt.
Technical Data 40W LED 3 rail track light CRI90
Power supply:
230V / 50/60 Hz (220V-240V)
36° viewing angle
Color temperature: (per model)
3000K warm white
Luminous flux: * 3000K = 3460 Lumen
Dimmable: no
Dimensions: Length: 172mm | Diameter spotlight: 90mm | Height 178mm
5-year manufacturer's warranty
Specified service life: at least 50,000 hours
Colour rendering index: RA: 92
Operating temperature: 10°C to 45°C
Certificates: CE, Rohs, EMC
Power consumption 1000 hours: 40kWh
Product category: | LED Track Lighting fixtures |
color temperature: | 3000k (Kelvin) |
luminous flux: | 3447 lumen |
material: | aluminum die-cast frame |
colour: | Silver Black White |
socket: | 3 phase rail |
beam angle: | 36° degree |
dimmable: | no |
power consumpt.: | 40 watt |
SMD-LED type: | COB-LED |
Application: | retail stores and shops |
energy efficiency class: | A++ |
consumption per 1000 hrs: | 40 kWh |
IP-Class: | IP 20 |
Power supply: | 230V / 50 Hz (from 185V to 265V) |
Operat. temperature: | -10°C to 45°C |
warranty: | standard legal regulations apply |
Additional information:: | 5 Jahre Herstellergarantie |
Product weight: | 1,10 Kg |
