This LED wallwasher for 3-phase track rails is ideal for shops, supermarkets and retail stores to illuminate high and long rows of shelves absolutely evenly.
Uniform illumination of long and high rows of shelves
Compared to spot and accentuating track spotlights, this wallwasher is designed to illuminate large areas evenly. This enables you to quickly and easily illuminate a complete Ragal row on the wall, without the hassle of aligning each individual spotlight.
LED wallwasher available in warm white 3000K and 4000K neutral white
The 42W LED wallwasher produces bright 4200 lumens (4000K) or 3900 lumens (3000K warm white). The beam angle is 90° to the side and 60° to the front. The model is also available as a version for ceiling installation in grid ceilings. The busbar adapter is already included. The use is very flexible due to the horizontal and vertical adjustment and rotation range.

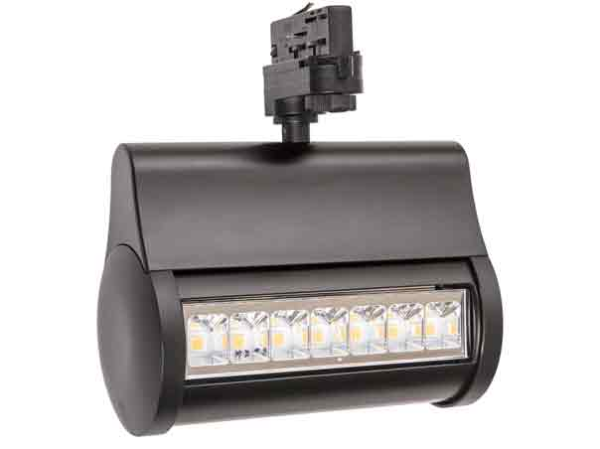

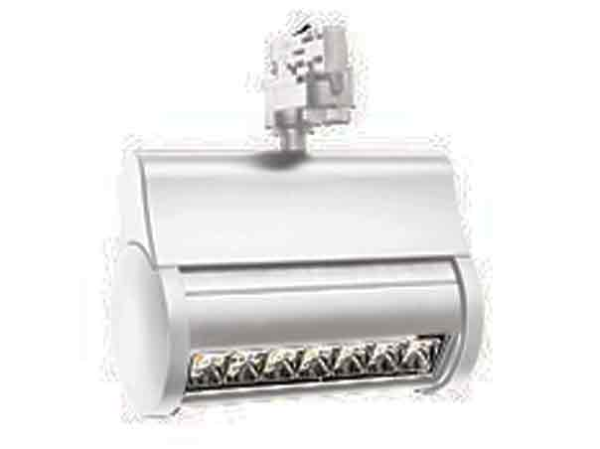

We offer the model in a black or white housing. On request we can provide you with light calculation data. The model fits in all common 3-phase rails.
The track-mounted spotlight uses branded LED chips The power supply is absolutely silent and thus does not interfere with continuous operation. The passive heatsink structure provides uniform cooling and enables lifetimes of up to 50,000 hours.
Specifications 42W LED Wallwasher
Power supply: 230V / 50/60 Hz (220V-240V) | Beam angle: 60° forward / 90° to side | Colour temperature: (per model) 3000K warm white / 400K neutral white
Luminous flux: * 3000K = 3900 Lumen 4000K =4200 Lumen | Dimmable: No, dimensions: Height: 160mm | Width of spotlight: 225mm | Height with adapter 225mm | 5-year manufacturer's warranty
Specified lifetime: at least 50,000 hours | Colour rendering index: CRI>80 | Operating temperature: 10°C to 45°C | Certificates: CE, Rohs, EMC
Power consumption 1000 hours: 42kWh
|Product category:||LED Track Lighting fixtures|
|color temperature:||4000k (Kelvin) 3000k (Kelvin)|
|luminous flux:||3900 Lumen 4200 lumen|
|socket:||3 phase rail|
|power consumpt.:||42 Watt|
|power factor (cos phi):||> 0,9|
|Application:||retail stores and shops|
|consumption per 1000 hrs:||42 kWh|
|Power supply:||230V / 50 Hz (from 185V to 265V)|
|Operat. temperature:||-10°C to 45°C|
|Additional information::||5 Jahre Herstellergarantie|
|Product weight:||0,80 Kg|
