Product Information
| Item information |
Value |
| HAN: |
ILMCT836K34XX |
| Category: |
LED recessed spotlight swivelling
|
| color temperature: |
2700 Kelvin, 2000-2700K (CCT) |
| average life cycle: |
50.000 hours |
| dimmable: |
yes, Yes Triac |
| luminous flux: |
500 Lumen, 650 Lumen |
| beam angle: |
36° degree |
| Additional information:: |
5 Jahre Herstellergarantie, Swivel reflectors are available with a 15° narrow beam and a 60° wide beam |
| IP-Class: |
IP 20 |
| warranty: |
standard legal regulations apply |
| consumption per 1000 hrs: |
8 kWh |
| diameter / hole size: |
70mm, 80mm, 70mm bis max. 85mm, 75 mm, max. ca.83 mm |
| colour: |
White RAL 9016, Black RAL 9017, Brushed stainless steel |
| No flicker / flicker free: |
Yes |
| Swiveling: |
Yes |
| colour rendering (CRI): |
CRI 98+ |
| dimensions: |
90x90 mm |
Product Description
Premium The square dimmable LED downlight is a refined and contemporary recessed luminaire for demanding interiors. With its square design, CRI 98 colour quality, 8W output and dimmable light control, it delivers comfort, efficiency and visual appeal in one elegant solution. The included power supply and the choice of 2700K, Dim2Warm, 3000K and 4000K make it a versatile option for both residential and commercial projects.
Square dimmable LED downlight 90x90 mm – CRI 98, 2700K or Dim2Warm
A premium tilt-adjustable downlight for refined interiors, combining exceptional colour rendering, smooth phase-cut dimming and a modular design for long-term flexibility.
CRI 988 watts36°2700K / 3000K / 4000K / Dim2WarmPower supply included
Are you looking for lighting that feels warm, consistent and genuinely premium? This square dimmable LED downlight is designed to bring out colours beautifully, with the natural clarity of CRI 98 and a tilt-adjustable construction that gives you precise control over the light direction.
Its 90 x 90 mm format sits neatly within modern interiors, while the modular structure with trim, LED module and control gear makes the fixture practical, serviceable and easy to plan into a project.
Available in matt black, white and brushed matt stainless steel.
Light colour guide: Not sure whether 2700K, 3000K, 4000K or Dim2Warm is right for your project? In the Cologne LED light colour guide we explain, with examples, which colour temperature suits living rooms, hotels, practices, shops and offices – including comparison images and practical recommendations.
Open the light colour guide
Why CRI 98?
Most LED downlights on the market are rated CRI 80 to 85. That is fine for general lighting, but not for spaces where colour accuracy matters. This spotlight reaches CRI 98, rendering reds, turquoise tones, skin tones and materials with striking naturalness.
Even in the warm 2700K range, the light quality remains exceptionally high. That matters, because lower-quality LEDs often look flat, yellowish or lifeless in warm-white applications.
Sources: IES TM-30-20 – Colour Rendition · DIN EN 12464-1 – Lighting of work places · Stroboscopic flicker – perceptual thresholds.
CRI 98 slider & measurements
Below you will find a three-scene CRI comparison slider showing the difference between CRI 80 and CRI 90+ on food, flowers and gallery artwork.
Keep the slider markup exactly as shown to preserve the working interaction in JTL.
CRI 80 vs. CRI 90+ — see the difference
What does “CRI 90” mean compared with an inexpensive CRI 80 standard LED? Drag the slider in the three scenes — you will see the effect directly on food, flowers and gallery lighting.
2700K and Dim2Warm
2700K Super Warm White
The 2700K module delivers warm incandescent-style light with 650 lumens at 8 watts. It is an excellent choice for homes, hospitality and any setting where a welcoming, high-end atmosphere is important.
Light quality: Ra 98 · R9 93 · flicker-free measured.
Dim2Warm 2700K to 2000K
With Dim2Warm, the light becomes progressively warmer as you dim it, shifting from 2700K at full output down to 2000K at lower levels. The result is an elegant incandescent-style ambience, ideal for homes, hotels and restaurants.
Dimming: standard phase-cut dimmer, no additional control wire required.
LED modules compared
| Feature |
2700K |
Dim2Warm |
3000K / 4000K |
|
| Luminous flux |
650 lm |
500 Lumen or less depends on dimming level |
depending on version 650 or 700 lm |
|
| Colour temperature |
2700K |
2700K to 2000K |
3000K / 4000K |
|
| Colour rendering |
CRI 98 |
CRI 98 |
CRI 98 |
|
| Flicker |
flicker-free |
flicker-free |
flicker-free |
|
| Power |
8 W |
8 W |
8 W |
|
| Beam angle |
36° |
36° |
36° |
|
| Dimming |
Phase-cut / TRIAC |
Phase-cut / TRIAC |
Phase-cut / TRIAC, DALI available |
|
| Shape |
square, tilt-adjustable |
square, tilt-adjustable |
square, tilt-adjustable |
|
| Trim colours |
Black, White, Brushed Stainless Steel |
Black, White, Brushed Stainless Steel |
Black, White, Brushed Stainless Steel |
|
| Overall size |
90 x 90 mm |
90 x 90 mm |
90 x 90 mm |
|
| Cut-out size |
70 to approx. 83 mm |
70 to approx. 83 mm |
70 to approx. 83 mm |
|
| IP rating |
IP20 |
IP20 |
IP20 |
|
| Warranty |
5 years |
5 years |
5 years |
|

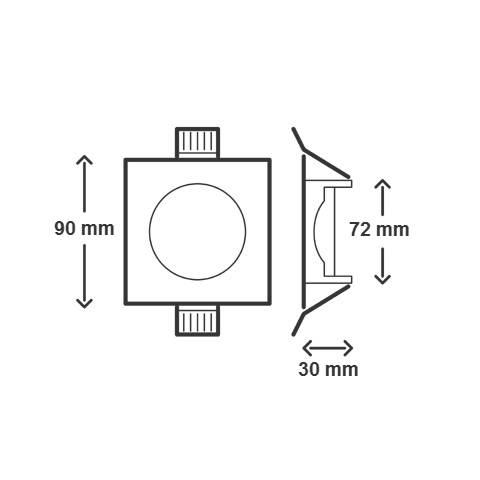

Dimensions
Overall size 90 x 90 mm, installation depth approx. 72 mm and variable cut-out size from 70 to approx. 83 mm. This makes the spotlight suitable for retrofits and replacing existing recessed lights.
FAQ
Is the LED downlight dimmable?
Yes. The spotlight is standard phase-cut dimmable (TRIAC) and can also be planned with DALI depending on the version.
Which colour temperatures are available?
Available are 2700K, 3000K, 4000K and Dim2Warm from 2700K down to 2000K.
What is the difference between 2700K and Dim2Warm?
2700K stays constant warm white. Dim2Warm becomes warmer as you dim it, creating an incandescent-like lighting effect.
Is the power supply included?
Yes, the power supply is included in the price.
Which cut-out size is required?
The cut-out size is 70 to approx. 83 mm.
Other variants
We also offer this model as a round version. The round dimmable and tilt-adjustable LED downlights with CRI 98 are available in 3000K and 4000K; versions in 2700K Super Warm White and Dim2Warm are also available.
