ED SERIES ED4KX · 140mm LED Recessed Downlight · CRI 94 · Trailing-Edge Dimming
The ED4KX (140 mm) is an 11-watt LED recessed downlight with trailing-edge dimming for ceiling apertures of 110 to 130 mm — with Samsung® LEDs, measured CRI 94, flicker-free light, IP44 protection and 1,100 lumens of luminous flux. Best-selling model of the ED Series — consistently popular since 2018.
⚡ 11 Watts · 1,100 Lumens (100 lm/W)
🎨 CRI 94 · CQS 94 · Samsung® LEDs
📐 Aperture: 110 · 115 · 120 · 125 · 130 mm (max. 135)
💧 Protection: IP44 · Trailing-edge dimming
🎭 Dimming: Trailing edge · KNX-compatible via dimmer actuator
📐 Beam angle: 110° wide-beam · UGR < 23
🌡 Colour temp.: 3000K Warm White (930) / 4000K Neutral White (940)
🔒 Warranty: 5 years · L90 | B10 · 50,000 h
Compatible with trailing-edge dimmers from Merten, Busch-Jäger, Jung and Gira. Dimmable 230 V driver included.
→ Compare all 5 models in the ED Series (110mm to 300mm)
✓
Driver included in the set — no additional purchase required Scope of delivery: ED4KX 140mm + dimmable 230 V driver + spring clips. Pre-wired — Plug & Dim. (Note: Spec icons show “NO DRIVER” from the manufacturer — with the ED4KX, Cologne LED always includes the driver.)
Part of the ED Recessed Downlight Series — 5 sizes, 2 dimming variants 110 / 140 / 180 / 245 / 300 mm · Trailing-edge & DALI · all models compared side by side
← Back to Series Overview
DALI
Need KNX / Smart Building integration? Same luminaire body, different driver — direct DALI-2 integration into KNX and building automation.
DALI Version →
Proven quality — best-selling model since 2018. The ED4KX 140mm has been the best-selling model in the ED Series for over 8 years: in daily use in hairdressing salons, retail outlets, offices, hotels and high-end residential projects. The combination of genuine CRI 94, flicker-free trailing-edge dimming and the wide aperture range of 110–130 mm is rare on the market.
✔ Flicker-free ✔ Samsung® LEDs ✔ KNX-compatible ✔ 5-year warranty ✔ CRI 94
Certified: ✓ IP44 CE RoHS ✓ 5 Yr Warranty ✓ Flicker-free ✓ Samsung® LEDs ✓ CRI 94 measured ✓ Driver incl. Updated: 16 May 2026
140mm LED recessed downlight dimmable, CRI 94 — for ceiling apertures 110 to 130 mm
The ED4KX 140mm recessed downlight is available in 3000K Warm White and 4000K Neutral White, delivering a measured colour rendering of CRI 94 (Ra > 90). It fits ceiling apertures of 110 to 130 mm (max. 135 mm) — exactly the cutout size most commonly found in renovation projects from the 2000s.
At 11 watts and 1,100 lumens at 100 lm/W, it delivers the light output of a 75-watt incandescent bulb at one seventh of the energy consumption. Dimmable via standard trailing-edge wall dimmers or via KNX dimmer actuator.
Colour temperatures — spec overview 3000K and 4000K
3000K Warm White (930)
Warm, homely atmosphere · ideal for hotels, hospitality, residential, salons
4000K Neutral White (940)
Crisp, neutral light · ideal for offices, retail, bathrooms

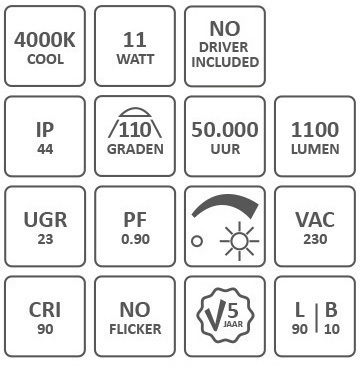

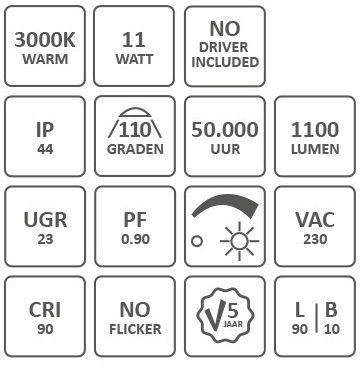

✓ Note on the spec icons: The icon strip shows “NO DRIVER INCLUDED” from the manufacturer — with the ED4KX 140mm, the dimmable 230 V driver is always included in the delivery, pre-wired and ready to install.
Light quality: CRI 94 — colours as they truly are
CRI 80 vs. CRI 94 — the visible difference: In a retail space, hairdressing salon or bathroom, light quality shapes the overall impression. CRI 94 renders reds, skin tones and natural materials as naturally as daylight — not muddy or washed out as with CRI-80 standard products.
94
CQS — Colour Quality Score
1 %
Flicker index (flicker-free)
- Very high colour rendering: CRI 94 and CQS 94
-
Flicker-free — flicker index 1 % (IEC-compliant)
- Highly uniform colour distribution in the TM30-20 colour gamut
-
1,100 lumens at 11 W · UGR < 23 per EN 12464-1
CRI 80 vs. CRI 94 — see the difference for yourself
Drag the slider across the three scenes — the effect is immediately visible on food, flowers and gallery lighting. Pay particular attention to reds, teal and skin tones — the critical test colours defined in CIE 13.3.
CRI 80 CRI 94
Dragon fruit, pomegranate, figs — under CRI 80 reds and pinks look dull and brown-tinged; under CRI 94 they glow vibrantly. Essential for retail, hospitality and food service.
Standard LED CRI 80Cologne LED CRI 94
CRI 80 CRI 94
Sunflowers (R10 yellow), roses (R9 red), hydrangeas (R5 teal), peach tulips (R13 skin tone) — CRI 94 renders the full test-colour spectrum accurately.
Standard LED CRI 80Cologne LED CRI 94
CRI 80 CRI 94
Gallery lighting: DIN EN 12464-1 requires CRI > 90 — CRI 94 exceeds this significantly, rendering pigments at their original intensity.
Standard LED CRI 80Cologne LED CRI 94
What you see: At CRI 80, red and cyan spectral components are missing — reds turn brown-tinged, teal blurs into blue-grey. CRI 94 renders the visible spectrum almost exactly as daylight — verifiable to
CIE 13.3 / TM-30-20.
IP44 — suitable for bathrooms and covered outdoor areas
With protection class IP44, the ED4KX is also suitable for damp locations: bathrooms (outside protection zone 1 — not directly above shower or bath), covered outdoor areas such as porches and canopies, and changing rooms in sports facilities.

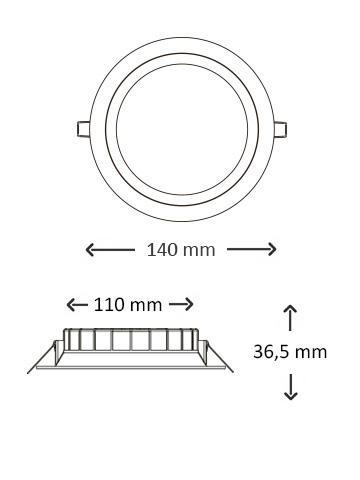

Dimensions & Installation
| Outer diameter |
140 mm |
| Ceiling aperture |
110 · 115 · 120 · 125 · 130 mm (max. 135 mm)
|
| Installation depth |
[check data sheet] |
| Beam angle |
110° wide-beam |
Rule of thumb: the aperture must be at least 10 mm smaller than the outer diameter. At 135 mm please check the cut quality before installation.
Compatible ceiling apertures at a glance
110 mm 115 mm 120 mm 125 mm 130 mm max. 135 mm
Aperture 90–100 mm? → ED3KX 110mm. Aperture 150–170 mm? → ED6KX 180mm.
What's in the box — driver included, nothing extra to buy
COMPLETE SET Everything included — ready to install
-
1× LED recessed downlight ED4KX (140mm, white, chosen colour temperature 3000K or 4000K)
-
1× dimmable 230 V driver for trailing-edge dimming — pre-wired ✓
- Spring clips for tool-free ceiling installation
- Easyfit installation guide (see downloads)
Plug & Dim: Unbox, fit into the ceiling cutout, connect — done.
Tested dimmer compatibility
KNX / Smart Home
Compatible with KNX trailing-edge dimmer actuators (e.g. MDT, Gira). For pure KNX installations we recommend the DALI version — cleaner integration with no minimum-load issues.
Important: Use only LED-compatible trailing-edge dimmers. Standard leading-edge (phase-cut) dimmers for incandescent bulbs are not approved and may cause flickering or damage.
Features & benefits at a glance
- Excellent colour rendering CRI 94 / Ra > 90
-
IP44 — for damp locations and covered outdoor areas
- Steplessly dimmable via trailing-edge dimmer · DALI version available separately
- 5-year manufacturer warranty
-
3000K Warm White or 4000K Neutral White
- Rated life 50,000 hours (L90 | B10)
-
1,100 lumens · 11 W · 100 lm/W
- Premium Samsung® LEDs · flicker index 1 %
- Wide aperture range: 110 to 130 mm
Show full technical specifications ▾
| Outer diameter |
140 mm |
| Ceiling aperture |
110 · 115 · 120 · 125 · 130 mm (max. 135 mm) |
| Installation depth |
[check data sheet] |
| Power |
11 Watts |
| Luminous flux |
1,100 Lumens · Efficacy: 100 lm/W |
| Colour rendering |
CRI 94 / Ra > 90 · CQS 94 |
| Colour temperature (selectable) |
3000K Warm White or 4000K Neutral White |
| Beam angle |
110° wide-beam |
| Protection class |
IP44 |
| Glare value (UGR) |
UGR < 23 (EN 12464-1 compliant) |
| Flicker behaviour |
Flicker-free · flicker index 1 % |
| Rated life |
50,000 hours · L90 | B10 |
| Mains voltage |
230V / 50–60 Hz (220–250V) |
| Dimming |
Yes (trailing-edge) · DALI version available separately |
| Tiltable |
No (fixed installation) |
| LEDs |
Samsung® mid-power LEDs |
| Energy consumption / 1,000 h |
11 kWh |
| Operating temperature |
10°C to 45°C |
| Energy efficiency |
Class A+ |
| Warranty |
5-year manufacturer warranty |
Downloads — data sheets & installation guide
All models in the ED Series — 5 sizes, 2 dimming variants
The ED4KX is part of the complete ED Recessed Downlight Series — every size available as trailing-edge and DALI-2 version:
ED3KX
110 mm
Aperture 90–100 mm
8 W · 700 lm · CRI 94
YOU ARE HERE
ED4KX
140 mm
Aperture 110–130 mm
11 W · 1,100 lm · CRI 94
ED6KX
180 mm
Aperture 150–170 mm
15 W · 1,500 lm · CRI 90+
ED8KX
245 mm
Aperture 200–235 mm
20 W · 2,000 lm · CRI 92
HIGH CEILINGS
ED10K
300 mm
Aperture 250–290 mm
40 W · 4,000 lm · CRI 91–92
→ Compare all 10 ED Series variants side by side
Frequently asked questions about the 140mm ED4KX
Will the ED4KX fit my 120 mm ceiling aperture?
Yes — the ED4KX covers apertures from 110 to 130 mm. A 120 mm cutout sits right in the middle of the ideal range and fits without any modification. At 135 mm, please check the cut quality before installation.
Is the driver really included in the delivery?
Yes — the matching dimmable 230 V driver is always included and comes pre-wired. The manufacturer's spec icon shows “NO DRIVER INCLUDED” as a generic graphic — this does not apply to our delivery.
Which dimmer do you recommend?
Proven models: Merten MEG5134-0000 (up to 10 luminaires), Busch-Jäger 2250U / 6523U (up to 10), Jung 224 and Gira 245000 / 244000 (up to 5 each). Always use trailing-edge (leading-edge off) dimmers only. Tell us your switch range — we'll recommend the right dimmer free of charge.
Is there a DALI version for KNX?
Yes — the
DALI version of the ED4KX 140mm uses the same luminaire body with a DALI-2 driver — integrates directly with KNX, Gira HomeServer and DALI bus systems.
