ED SERIES ED3KX · 110mm LED Ceiling Spotlight · CRI 94 · Trailing-Edge Dimming
The ED3KX (110mm) is an 8-watt LED ceiling spotlight with trailing-edge dimming for small ceiling apertures of 90 to 100 mm — with Samsung® LEDs, measured CRI 94 (spectrometer-verified), CQS 94, flicker-free light (flicker index 1 %), IP44 protection and stepless trailing-edge dimming. Ideal for retail, hospitality, hotels, bathrooms and covered outdoor areas — wherever colours need to appear natural.
⚡ 8 Watts · 700 Lumens (88 lm/W)
🎨 CRI 94 · CQS 94 · Samsung® LEDs
📐 Aperture: 90 · 95 · 100 mm (max. 105 mm)
💧 Protection: IP44 · Installation depth: 36.5 mm
🎛️ Dimming: Trailing edge · KNX-compatible via dimmer actuator
📐 Beam angle: 110° wide-beam · UGR < 23
🌡️ Colour temperature: 3000K Warm White (930) / 4000K Neutral White (940)
🔒 Warranty: 5 years · L90 | B10 · 50,000 h
Premium colour rendering: With CRI 94, significantly above the market standard. Compatible with trailing-edge dimmers from Merten, Busch-Jäger, Jung and Gira, as well as KNX dimmer actuators from MDT and Gira. Delivery includes 230 V driver.
→ Compare all 5 models in the ED Series (110mm to 300mm)
✓
Driver included in the set — no additional purchase required Scope of delivery: 110mm ceiling spotlight + dimmable 230 V driver + spring clips. Pre-wired — Plug & Dim. (Note: The spec icons show "NO DRIVER" from the manufacturer — with the ED3KX 110mm from Cologne LED, the driver is always included.)
Proven quality — successfully deployed for over 8 years. The ED3KX 110mm ceiling spotlight has been sold in the German market for more than 8 years. Several hundred units are in daily use today — from premium retail outlets and hairdressing salons to restaurants and high-end residential lighting. The combination of genuine CRI 94 colour rendering, flicker-free trailing-edge dimming and a small 90 mm aperture is rare in this class.
✔ Spectrometer-tested · ✔ Flicker index 1 % · ✔ Samsung® LEDs · ✔ KNX-compatible · ✔ 5-year warranty
Certified: ✓ IP44 CE RoHS ✓ 5 Yr Warranty ✓ Flicker index 1 % ✓ Samsung® LEDs ✓ CRI 94 measured ✓ Driver incl. Updated: 7 May 2026
110mm LED ceiling spotlight dimmable with CRI 94 — for ceiling apertures 90 to 100 mm
Where colour matters — in a fashion boutique, hairdressing salon, restaurant, bathroom or living room — the quality of light determines the result. The ED3KX 110mm ceiling spotlight delivers a measured colour rendering of CRI 94 (Ra > 90), well above what typical LED spotlights in this class offer: reds appear truly red, skin tones natural, wood warm — not grey or washed out as with many CRI-80 products.
With 8 watts of power and 700 lumens of luminous flux, the spotlight replaces a classic 40-watt incandescent bulb at one fifth of the energy consumption. The compact form factor — 110 mm outer diameter and just 36.5 mm installation depth — makes it the first choice for ceiling apertures between 90 and 100 mm, the most common cutout sizes in existing installations.
Available colour temperatures — spec overview at a glance
3000K Warm White (930)
Homely, warm atmosphere · ideal for hotels, hospitality, residential
4000K Neutral White (940)
Neutral, crisp colour temperature · ideal for retail, offices, bathrooms, salons
Both colour temperatures are premium variants with the "9xx" suffix (930 = 3000K with CRI 9x, 940 = 4000K with CRI 9x) — the industry standard for above-average colour rendering.

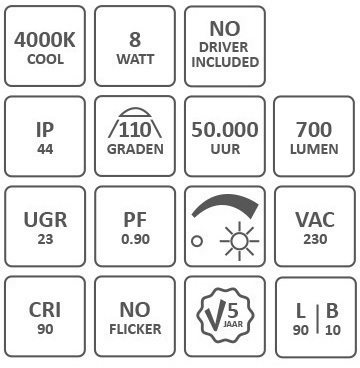

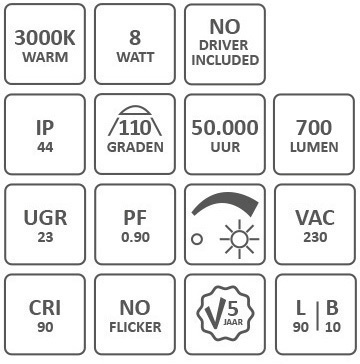

✓ Note on the spec icons above: The icon strip shows "NO DRIVER INCLUDED" from the manufacturer — this standard graphic applies to the Easyfit family in general. With the ED3KX 110mm ceiling spotlight from Cologne LED, the matching dimmable driver is always included in the delivery and already pre-wired. You do not pay extra for the driver.
Light quality: CRI 94 — measured with a spectrometer
CRI 80 vs. CRI 94 — the visible difference: In retail spaces, hairdressing salons and anywhere colour influences purchasing decisions or perception, CRI 94 makes a noticeable difference. Reds, oranges, skin tones and violets appear as they would in daylight — not washed out as with standard CRI-80 spotlights.
The CRI value (Colour Rendering Index, Ra) measures how naturally colours appear under a light source on a scale from 0 to 100. Ra > 90 is the minimum requirement of EN 12464-1 for retail spaces and workplaces with high colour rendering demands. We measured the ED3KX with a spectrometer — the result of CRI 94 and a CQS value of 94 is well above market level.
94
CRI / Ra (spectrometer)
94
CQS — Colour Quality Score
1 %
Flicker index (flicker-free)
Results from our spectrometer measurement
- Excellent colour rendering with CRI 94 and an equally high CQS value of 94 (Colour Quality Score)
-
Flicker-free with a flicker index of just 1 %
- Very evenly distributed colours across the TM30-20 colour gamut
- Bright 700 lumens of luminous flux at only 8 watts of energy consumption
- Measured UGR value < 23 — compliant with EN 12464-1 for retail and general workplaces
This LED ceiling spotlight is ideally suited to any application where excellent colour rendering of goods, food, skin tones or materials is essential. The warm white 3000K models in particular produce noticeably better light than many low-cost CRI-80 recessed spotlights.
Light distribution — 110° wide-beam
The ED3KX emits light across a wide beam angle of 110°, providing uniform general illumination — without harsh hotspots or dark patches between spotlights. The luminous intensity distribution curve below shows the emission characteristics in polar form:
Polar diagram · Peak approx. 500 cd/klm at 0° · uniform light cone to ±55°
LED recessed spotlight for bathrooms and covered outdoor areas
With its IP44 protection rating and 90 mm aperture, this model is particularly well suited for use in damp areas such as bathrooms (outside protection zone 1, i.e. not directly above a shower or bath) as well as a ceiling spotlight under canopies, in entrance areas, covered car ports or changing rooms in sports facilities. The compact form factor with just 36.5 mm installation depth allows fitting even in shallow ceiling voids.

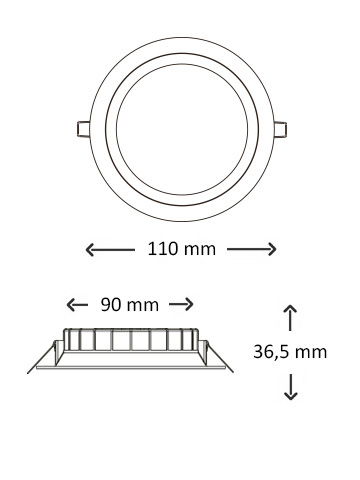

Dimensions & Installation
| Outer diameter |
110 mm |
| Aperture (range) |
90 – 100 mm (max. 105 mm with clean cut)
|
| Installation depth |
36.5 mm |
| Beam angle |
110° wide-beam |
Rule of thumb: The aperture must be at least 10 mm smaller than the outer diameter. With a 105 mm aperture, check that the holes are cleanly cut before installation.
Compatible aperture sizes at a glance
90 mm 95 mm 100 mm max. 105 mm
For apertures of 110 mm and above, we recommend the larger model ED4KX 140mm from the same series.
CRI 80 vs. CRI 92+ — see the difference for yourself
What does "CRI 92" actually mean compared to a budget CRI-80 standard LED? Drag the slider across the three scenes — you can see the effect directly on food, flowers across the full colour spectrum (R1–R14) and in gallery lighting. Pay particular attention to reds, teal and skin tones — the critical test colours of standard CIE 13.3.
CRI 80 CRI 90+
Dragon fruit, pomegranate, figs and berries — at CRI 80, the red and pink tones appear dull and brownish; under CRI 90+ they glow vibrantly and appetisingly. Essential for retail, hospitality and hotels.
Standard LED CRI 80Cologne LED CRI 90+
CRI 80 CRI 90+
Sunflowers (R10 Yellow), Delphinium (R12 Blue), Hydrangeas (R5 Teal), Roses (R9 Red), Lupins (R7 Violet), Peach Tulips (R13 Skin tone). The CRI difference across the full test colour spectrum is visible at a glance.
Standard LED CRI 80Cologne LED CRI 90+
CRI 80 CRI 90+
Contemporary oil painting with saturated colour blocks. For gallery and showroom use, CRI > 90 is required under DIN EN 12464-1 — anything below distorts the colour impression of the works.
Standard LED CRI 80Cologne LED CRI 90+
What you see: At CRI 80, portions of the red and cyan spectral range are missing — red appears brownish, teal merges into blue-grey, skin tones become pallid. CRI 90+ renders the full visible spectrum almost like daylight.
Cologne LED ED Series: all models with Samsung® LEDs and measured CRI 92 (peak values up to CRI 94). Verifiable to
CIE 13.3 / TM-30-20.
Scope of delivery: ceiling spotlight including driver — no additional purchase required
COMPLETE SET Everything included — ready to install
-
1× LED ceiling spotlight ED3KX (110mm, white RAL 9016, selected colour temperature 3000K or 4000K)
-
1× dimmable 230 V driver for trailing-edge dimming — already pre-wired ✓
- Spring clips for tool-free installation in the ceiling
- Easyfit 2026 instruction manual (see download section)
Plug & Dim: Unbox, insert into the ceiling aperture, connect — done. No separate driver purchase required.
Tested Dimmer Compatibility
The 110mm ceiling spotlight dims reliably via trailing-edge dimming with the following proven wall dimmer models:
KNX / Smart Home Control
The ED3KX can also be dimmed via a home automation or smart home system with KNX — provided the dimmer actuator supports trailing-edge dimming. Proven actuators come from MDT or Gira, for example. Please contact us before purchasing for advice on the appropriate actuator for your KNX installation.
Important note on trailing-edge dimming: Please use only LED-compatible trailing-edge dimmers. Conventional dimmers for incandescent lamps (leading-edge/phase-cut) are not approved and can cause flickering, humming or damage. With trailing-edge dimming, the actual light output is physically slightly below the rated wattage — this is a characteristic of trailing-edge dimming technology and not a product defect.
Features & Advantages at a Glance
- Excellent colour rendering of Ra > 94 — perceptibly better colour quality than CRI-80 competitors
-
IP44 protection rating — approved for damp areas and covered outdoor use
- Steplessly dimmable via trailing-edge dimmer and KNX actuator
- 5-year manufacturer's warranty
- Superb colour temperatures: 3000K Warm White or 4000K Neutral White — both high-CRI
- Long service life of 50,000 hours (L90 | B10)
-
Flicker-free with a measured flicker index of just 1 %
- Premium Samsung® LEDs — top-grade semiconductors from South Korea
Show full technical specifications ▾
Technical specifications: 110mm LED ceiling spotlight dimmable CRI 94
| Outer diameter |
110 mm |
| Aperture / Ceiling cutout |
90 · 95 · 100 mm (max. 105 mm) |
| Installation depth |
36.5 mm |
| Wattage |
8 Watts |
| Luminous flux |
700 Lumens · Efficiency: 88 lm/W |
| Colour rendering |
CRI 94 / Ra > 90 (spectrometer-verified) · CQS 94 |
| Colour temperature (selectable) |
3000K Warm White (930) or 4000K Neutral White (940) |
| Beam angle |
110° wide-beam |
| Protection rating |
IP44 (splash-proof) |
| UGR glare value |
UGR < 23 (EN 12464-1 compliant) |
| Flicker index |
1 % — flicker-free per IEC standard |
| Service life |
50,000 hours · L90 | B10 |
| Power supply |
230V / 50–60 Hz (220–250V) |
| Dimming |
Yes (trailing-edge dimming) · KNX-compatible via dimmer actuator |
| Tiltable |
No (fixed installation) |
| LEDs |
Samsung® Mid-Power LEDs |
| Housing |
White RAL 9016 |
| Energy consumption / 1,000 h |
8 kWh |
| Operating temperature |
10°C to 45°C |
| Energy efficiency |
Class A (old classification) |
| Warranty |
5-year manufacturer's warranty |
Downloads — Data Sheets & Instruction Manual
More models in the ED Series — 5 sizes × 2 dimming variants
The 110mm ceiling spotlight is part of the complete ED recessed downlight series. Every size is available both as a trailing-edge dimming version (Triac, standard wall dimmers) and as a professional DALI-2 version for KNX/smart building applications. All models feature Samsung® LEDs, IP44 and a 5-year warranty:
YOU ARE HERE
ED3KX
110 mm
Aperture 90–100 mm
8 W · 700 lm · CRI 94
ED4KX
140 mm
Aperture 110–135 mm
11 W · 1,100 lm · CRI 93–94
ED6KX
180 mm
Aperture 150–175 mm
15 W · 1,517 lm · CRI 92
ED8KX
245 mm
Aperture 200–235 mm
20 W · 2,000 lm · CRI 92
HIGH CEILINGS
ED10K
300 mm
Aperture 250–290 mm
40 W · 4,000 lm · CRI 91–92
→ Compare all 10 model variants of the ED Series directly · EN: ED Series overview
Frequently Asked Questions about the 110mm ceiling spotlight ED3KX
What is the difference between CRI 94 and CRI 80, which is used in many standard LED spotlights?
The CRI value (Colour Rendering Index, Ra) indicates how naturally colours appear under a light source on a scale from 0 to 100. CRI 100 equals daylight.
CRI-80 LEDs are inexpensive commodity products suitable for corridors and storage rooms — but reds and skin tones appear grey or washed out. CRI 90+ is the minimum requirement of EN 12464-1 for retail spaces and workplaces. With CRI 94, the ED3KX sits firmly in the premium range — ideal for fashion, hairdressing, food, galleries and high-end living spaces.
We measure with a spectrometer and publish the genuine figures — no inflated datasheet claims.
Which ceiling apertures is the 110mm ceiling spotlight suitable for?
The ED3KX (110 mm outer diameter) fits ceiling apertures of 90 to 100 mm. Up to 105 mm is possible — provided the holes are cleanly cut.
Specifically covered: 90 mm, 95 mm, 100 mm. For larger apertures (110–135 mm), we recommend the larger model ED4KX 140mm from the same series.
With just 36.5 mm installation depth, the ED3KX is also suitable for shallow ceiling constructions.
Which dimmers work — and can I dim the spotlight via KNX?
The ED3KX dims reliably with trailing-edge wall dimmers from Merten (MEG5134-0000), Busch-Jäger (2250U, 6523U), Jung (224) and Gira (245000, 244000 S3000). Conventional leading-edge dimmers for incandescent lamps are not approved.
Via KNX, dimming works seamlessly — provided the dimmer actuator supports trailing-edge dimming. Actuators from MDT and Gira have proved reliable. Please contact us before purchasing — we will recommend the right actuator for your KNX installation.
Is the driver included in the delivery?
Yes — the 230 V driver is included in the delivery and already pre-wired. You can install and connect the spotlight immediately after unboxing (Plug & Dim).
The driver is secured in the ceiling void. Spring clips hold the luminaire body tool-free in the ceiling aperture.
Can I use the ceiling spotlight in a bathroom or outdoors?
Yes — with IP44, the ED3KX is approved for damp areas and covered outdoor use. Bathroom protection zones per DIN VDE 0100-701:
- Zone 0 (in water): not suitable — IP67+ required
- Zone 1 (directly above shower/bath): not suitable — IP65+ recommended
- Zone 2 and outside (from 60 cm away from the water jet): IP44 is sufficient ✓
Typical applications: bathroom (outside shower zone), canopy, entrance area, carport, sports facility changing rooms.
STATEMENT TO CHECK Checked, measured, verifiable — all specifications can be independently verified
We make it easy to verify our claims. The following values and properties are based on established standards, manufacturer data sheets or our own spectrometer measurements. The sources are linked below — external pages open in a new tab.
| CRI 94 (Ra > 90) |
Spectrometer measurement in our lighting laboratory · Standards basis CIE 13.3 / TM-30-20
|
| UGR < 23 / EN 12464-1 |
Glare limits for retail spaces and general workplaces per DIN EN 12464-1
|
| Flicker index 1 % (No Flicker) |
Measured to IEEE Std 1789-2015 — recommendations on modulation of LED current (health aspects) |
| L90 | B10 · 50,000 h |
Service life classification per IEC 62717 / IEC 62722-2-1 (LED module performance) |
| IP44 / Bathroom protection zones |
Installation zones regulated by DIN VDE 0100-701 (electrical installations — rooms with bathtubs or showers) |
| Samsung® LEDs |
Mid-power LED components from Samsung LED — data sheets available directly from the manufacturer |
| Owner qualification |
Oliver Rothweiler — Technical Energy Manager TÜV Süd (TÜV Süd personal certificate). Consultancy provided on the basis of documented professional qualification. |
Do you have doubts about a specific specification? Write to us — we will send you the relevant data sheets, spectrometer measurement reports or declarations of conformity directly.
CL
Consulting & Lighting Design
Cologne LED — Lighting Design & Consulting from Cologne
Owner Oliver Rothweiler is a Technical Energy Manager TÜV Süd with over 8 years of experience in professional LED lighting technology. We advise and supply retail businesses, hairdressing salons, restaurants, hotels and commercial construction projects — from selecting the right colour temperature and CRI class to the ideal dimmer combination and complete lighting design for your project. Efficiency, light quality and long-term reliability are our business.
☎ +49 (0) 221 29821660 · ✉ team(at)cologne-led(.)de · About us →
Do you have questions about the 110mm ceiling spotlight?
Questions about our LED recessed downlights, delivery times or the right dimmer choice? As a TÜV Süd-certified Technical Energy Manager, efficiency is our business — we love a personal conversation!
── End of Product Description ED3KX 110mm Ceiling Spotlight CRI 94 ──
