ED SERIES ED6KX · 180mm LED Recessed Downlight · CRI 90 · Phase Dimming
The ED6KX (180 mm) is a 15-watt LED recessed downlight with trailing-edge dimming for standard ceiling apertures of 150 to 170 mm. With Samsung® LEDs, measured CRI 90 (binning typically CRI 92, peaks to 94), flicker-free light, IP44 protection and 1,500 lumens luminous flux — the all-rounder of the ED Series for medium offices, retail spaces, hotel rooms and hairdressing salons.
⚡ 15 Watts · 1,500 Lumens (100 lm/W)
🎨 CRI 90+ · Ra > 90 · Samsung® LEDs
📐 Aperture: 150 · 160 · 170 mm
💧 Protection: IP44 · Installation depth: 50 mm
🎛️ Dimming: Trailing-edge · DALI variant also available
📐 Beam angle: 110° wide-beam · UGR < 23
🌡️ Colour temp: 3000K Warm White / 4000K Neutral White
🔒 Warranty: 5 Years · L90 | B10 · 50,000 h
Standard all-rounder of the ED Series: 150 mm aperture is the most common ceiling cutout in the DE renovation and new-build market. 1,500 lumens are sufficient to evenly illuminate medium rooms up to approx. 15 m² with 4–6 luminaires.
→ Compare all 5 models of the ED Series (110 to 300 mm)
✓
Driver included in the set — no additional purchase required Scope of delivery: 180mm recessed downlight + dimmable 230 V driver + spring clips. Pre-wired — Plug & Dim. (Note: Spec icons show manufacturer's "NO DRIVER" — for the ED6KX 180mm, we always include the driver.)
DALI
Need KNX / smart building control? This luminaire is also available as a DALI-2 variant — same luminaire body, different driver. Direct integration into KNX, building automation and DALI bus systems.
View DALI variant →
Proven quality — successfully in use for over 8 years. The ED6KX 180mm recessed downlight has been the best-seller of the ED Series for years — hundreds of units in daily use in offices, premium retail shops, shoe shops, exhibition stands, hotel rooms and hairdressing salons. 150 mm aperture is the most common standard ceiling cutout in the DE market — the ED6KX fits directly, without modification.
✔ Samsung® LEDs · ✔ Flicker index < 3% · ✔ ENEC + TÜV driver · ✔ KNX-capable (DALI variant) · ✔ 5-year warranty
Certified: ✓ IP44 CE RoHS ✓ ENEC + TÜV ✓ 5 Yr Warranty ✓ No Flicker ✓ Samsung® LEDs ✓ Driver Incl. Updated: 10 May 2026
180mm LED Recessed Downlight Dimmable CRI 90 — IP44 — for Aperture 150 / 160 / 170 mm
The ED6KX 180mm LED recessed downlight is available in 3000K Warm White or 4000K Neutral White. Fitted with high-quality Samsung® LEDs and an excellent colour rendering of Ra > 90 (CRI 90+). It fits many common 150 mm standard apertures as well as 160 and 170 mm ceiling cutouts — dimmable via standard trailing-edge dimmers, flicker-free, and produces bright 1,500 lumens luminous flux at only 15 watts power consumption.
With an efficiency of 100 lm/W, one ED6KX is the equivalent of a 100-watt incandescent lamp — at one sixth of the energy consumption. This makes it the first choice for retrofits with a classic 150 mm ceiling aperture: remove the old bulb, fit the ED6KX, done.
Available Colour Temperatures — Spec Overview at a Glance
3000K Warm White
Standard 3000K Warm White · ideal for hospitality, restaurants, living and waiting areas
4000K Neutral White
Neutral White 4000K · ideal for offices, retail premises, corridors and hallways

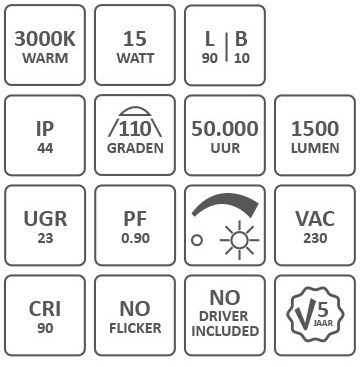

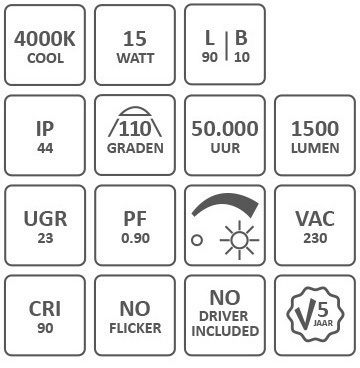

✓ Note on spec icons: The icon bar shows the manufacturer's "NO DRIVER INCLUDED" — this standard graphic applies to the Easyfit family in general. For the ED6KX 180mm, the matching dimmable driver is included in the scope of delivery, already pre-wired. You do not pay extra for the driver.
180mm LED Recessed Downlight — two colour temperatures for different rooms
The model is available in two different colour temperatures:
-
3000K Warm White — the standard colour temperature for residential areas, hotel rooms, restaurants, waiting rooms and private living spaces. Creates an inviting and relaxing atmosphere.
-
4000K Neutral White — the ideal colour temperature for offices, retail premises, corridors and hallways. Clean, neutral light without colour shift — colours at workplaces and on retail merchandise are rendered naturally.
Both models are dimmable via standard LED dimmers for leading- or trailing-edge dimming. Thanks to the high-quality Samsung® LEDs and a reliable driver, the manufacturer provides a 5-year warranty on this LED recessed spotlight.
Ra > 90 Colour Rendering — Colours as They Really Are
The ED6KX has an excellent colour rendering of Ra > 90 (CRI 90+). Anyone who values truly accurate colour reproduction for products and objects will be well served by this model. Especially the 3000K Warm White versions produce a noticeably more beautiful warm white than many budget CRI-80 recessed spotlights — wood looks warm, skin tones natural, fabrics rich.
Note on CRI measurement values (binning): The official specification is CRI 90 / Ra > 90. In practice, measured values are frequently CRI 92 due to LED binning of the Samsung® components, with peak measurements up to CRI 94. We specify conservatively — you typically get more.
This LED recessed downlight is ideally suited wherever accurate colour reproduction of illuminated goods and objects is important — for example in premium retail shops, shoe shops, fashion boutiques or exhibition stands. Colours are rendered very realistically; illuminated merchandise looks more genuine with true colour depth.
IP44 — suitable for bathrooms and covered outdoor areas
As a recessed spotlight with IP44 for 150 mm apertures, the ED6KX is particularly suited for use in damp areas such as bathrooms (outside protection zone 1, i.e. not directly above the shower or bath), under canopies outdoors or in changing rooms at sports facilities. The protection rating covers the majority of typical damp-area applications.

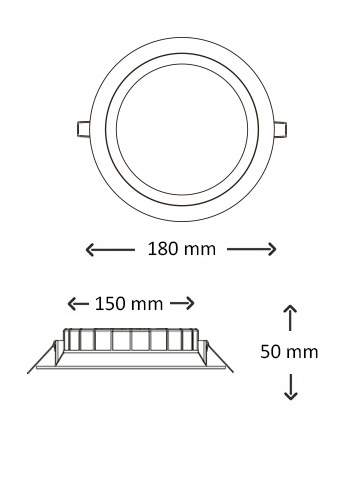

Dimensions & Installation
| Outer diameter |
180 mm |
| Aperture / ceiling cutout |
150 · 160 · 170 mm |
| Installation depth |
50 mm |
| Beam angle |
110° wide-beam |
Rule of thumb: the aperture must be at least 10–15 mm smaller than the outer diameter. With its 180 mm outer edge, the ED6KX comfortably covers 150, 160 and 170 mm apertures — the most common standard ceiling cutout in the German renovation market.
Compatible apertures at a glance
150 mm 160 mm 170 mm
Aperture 110–135 mm? → ED4KX 140mm. Aperture 200–235 mm? → ED8KX 245mm.
CRI 80 vs. CRI 90+ — see the difference for yourself
What does "CRI 90" mean compared to a budget CRI-80 standard LED? Drag the slider across the three scenes — you can see the effect directly on food, flowers with the full colour spectrum (R1–R14) and in gallery lighting. Pay particular attention to reds, teals and skin tones — the critical test colours of standard CIE 13.3.
CRI 80 CRI 90+
Dragon fruit, pomegranate, figs and berries — under CRI 80 the reds and pinks look dull and brownish; under CRI 90+ they glow vibrantly and appetisingly. Critical for retail, restaurants and hospitality.
Standard LED CRI 80Cologne LED CRI 90+
CRI 80 CRI 90+
Sunflowers (R10 yellow), delphinium (R12 blue), hydrangeas (R5 teal), roses (R9 red), lupins (R7 violet), peach tulips (R13 skin tone). The full CRI difference across the entire test-colour spectrum, visible at a glance.
Standard LED CRI 80Cologne LED CRI 90+
CRI 80 CRI 90+
Contemporary oil painting with saturated colour blocks. In gallery and showroom use, CRI > 90 is required per DIN EN 12464-1 — anything lower distorts the colour impression of the works.
Standard LED CRI 80Cologne LED CRI 90+
What you see: With CRI 80, portions of the red and cyan spectral range are missing — reds look brownish, teal merges into blue-grey, skin tones turn pallid. CRI 90+ renders the full visible spectrum almost like daylight.
Cologne LED ED Series: all models with Samsung® LEDs and measured CRI 92 (peak values up to CRI 94). Verifiable to
CIE 13.3 / TM-30-20.
What's in the box: 180mm recessed downlight including driver — no additional purchase required
COMPLETE SET Everything included — ready to install immediately
-
1× LED recessed downlight ED6KX (180mm outer diameter, white, chosen colour temperature 3000K or 4000K)
-
1× dimmable driver 230 V for trailing-edge dimming — already pre-wired ✓
- Spring clips for tool-free mounting in the ceiling
- Easyfit user manual (see downloads section)
Plug & Dim: Unpack, insert into the 150 mm ceiling aperture, connect — done.
Tested Dimmer Compatibility
The ED6KX dims reliably via trailing-edge dimming with the following proven wall dimmer models:
KNX / Smart Home Control
The ED6KX can also be dimmed via home automation or smart home with KNX — provided the dimmer actuator used supports trailing-edge dimming. Proven actuators come from MDT or Gira, for example. For pure KNX installations we recommend the DALI variant instead (same luminaire body, different driver) — DALI is often the clean solution for building automation.
Important note on phase dimming: Please use only LED-rated trailing-edge dimmers (also known as "Phasenabschnitt" in German). Classic dimmers for incandescent bulbs (leading-edge / "Phasenanschnitt") are not approved and may cause flickering, humming or damage. With trailing-edge dimming, the effective light output is physically slightly below nominal power — this is an inherent characteristic of the dimming method, not a product defect.
Features & Benefits at a Glance
- Excellent colour rendering of Ra > 90 / CRI 90+ — binning typically CRI 92
-
IP44 protection — approved for wet rooms and covered outdoor areas
- Continuously dimmable via trailing-edge dimmer (DALI variant available separately)
- 5-year manufacturer's warranty
- Very pleasant colour temperatures: 3000K Warm White or 4000K Neutral White
- Long service life of 50,000 hours (L90 | B10)
-
1,500 lumens luminous flux at only 15 W — efficiency 100 lm/W
- High-quality Samsung® LEDs
- Standard aperture 150 mm — fits most existing DE ceiling cutouts
Show full technical specifications ▾
Technical Specifications: 180mm LED Recessed Downlight Dimmable CRI 90
| Outer diameter |
180 mm |
| Aperture / ceiling cutout |
150 · 160 · 170 mm |
| Installation depth |
50 mm |
| Power |
15 Watts |
| Luminous flux |
1,500 lumens · Efficiency: 100 lm/W |
| Colour rendering |
CRI 90+ / Ra > 90 (binning typically CRI 92, peak measurements up to CRI 94) |
| Colour temperature (selectable) |
3000K Warm White or 4000K Neutral White |
| Beam angle |
110° wide-beam |
| Protection class |
IP44 (splash-proof) |
| Glare rating |
UGR < 23 (EN 12464-1 compliant) |
| Flicker behaviour |
Flicker-free (No Flicker, IEC standard) |
| Service life |
50,000 hours · L90 | B10 |
| Power supply |
230V / 50–60 Hz (220–250V) |
| Dimming |
Yes (leading- / trailing-edge dimming) · DALI variant available separately |
| Tiltable |
No (fixed installation) |
| LEDs |
Samsung® Mid-Power LEDs |
| Energy consumption / 1,000 h |
15 kWh |
| Operating temperature |
10°C to 45°C |
| Energy efficiency |
Class A+ |
| Warranty |
5-year manufacturer's warranty |
Downloads — Datasheets & User Manual
Further Models in the ED Series — 5 Sizes × 2 Dimming Variants
The 180mm recessed downlight is part of the complete ED recessed spotlight series. Each size is available as a phase-dimming version and as a DALI-2 version:
ED3KX
110 mm
Aperture 90–100 mm
8 W · 700 lm · CRI 94
ED4KX
140 mm
Aperture 110–135 mm
11 W · 1,100 lm · CRI 93–94
YOU ARE HERE
ED6KX
180 mm
Aperture 150–170 mm
15 W · 1,500 lm · CRI 90+
ED8KX
245 mm
Aperture 200–235 mm
20 W · 2,000 lm · CRI 92
HIGH CEILINGS
ED10K
300 mm
Aperture 250–290 mm
40 W · 4,000 lm · CRI 91–92
→ Compare all 10 model variants of the ED Series directly · EN: ED Series overview
Frequently Asked Questions about the 180mm Recessed Downlight ED6KX
Does the ED6KX fit my 150 mm ceiling aperture?
Yes — the ED6KX is designed exactly for this. It covers apertures from 150 to 170 mm. The most common standard ceiling cutout in the DE market is 150 mm — the ED6KX fits directly, without any widening.
For smaller apertures (110–135 mm) please choose the ED4KX 140mm, and for larger ones (200–235 mm) the ED8KX 245mm.
What does CRI 90 mean in practice — and is that really accurate?
The CRI value (Colour Rendering Index, Ra) indicates on a scale from 0 to 100 how naturally colours appear under a light source. CRI 90+ is the minimum requirement of EN 12464-1 for retail spaces and workplaces with colour rendering requirements.
We specify conservatively at CRI 90. Due to LED binning spread of the Samsung® components used, actual measured values are frequently CRI 92, with peak measurements up to CRI 94. You therefore typically receive more than what the datasheet states.
In practice: skin tones, wood, fabrics and food look noticeably more natural than under CRI-80 standard LEDs.
Can I dim the ED6KX via KNX?
With the trailing-edge variant shown here, KNX dimming is possible — provided the KNX dimmer actuator used supports trailing-edge dimming (e.g. MDT, Gira). This works well in many renovation projects.
For pure new-build / KNX installations, we recommend the DALI-2 variant — same luminaire body, just with a DALI driver. DALI is often the clean standard solution in smart building environments, with precise individual and group control.
Is the driver included in the scope of delivery?
Yes — the driver for the 230 V mains connection is included in the scope of delivery and already pre-wired. You can install and connect the spotlight straight out of the box (Plug & Dim). Spring clips hold the luminaire body tool-free in the ceiling aperture.
Can I use the ED6KX in a bathroom or covered outdoor area?
Yes — with IP44, the ED6KX is approved for wet rooms and covered outdoor areas. Protection zone rules in bathrooms per DIN VDE 0100-701:
- Zone 0 (in water): not suitable
- Zone 1 (directly above shower/bath): not suitable
- Zone 2 and beyond: IP44 is sufficient ✓
Typical applications: bathroom (outside the shower zone), canopy, entrance area, carport, changing rooms.
STATEMENT TO CHECK Verified, measured, traceable — all specifications are verifiable
We make it easy for you to verify our claims. The following values are based on established standards, manufacturer datasheets or our own measurements — sources are linked below.
| CRI 90+ / Ra > 90 |
Standard basis CIE 13.3 · Binning typically CRI 92, peaks to CRI 94 |
| UGR < 23 / EN 12464-1 |
Glare limit values for retail spaces and general workplaces per DIN EN 12464-1
|
| No Flicker |
Recommendations per IEEE Std 1789-2015 on LED current modulation (health aspects) |
| L90 | B10 · 50,000 h |
Service life classification per IEC 62717 / IEC 62722-2-1 |
| IP44 / Bathroom protection zones |
Installation zones governed by DIN VDE 0100-701
|
| Samsung® LEDs |
Mid-Power LED components from Samsung LED
|
| Owner qualification |
Oliver Rothweiler — TÜV Süd Certified Technical Energy Manager (TÜV Süd personal certificate) |
Have doubts about a specific claim? Write to us — we'll send you datasheets, measurement reports or declarations of conformity directly.
